Angiogram: How Long It Takes and How Serious It Is

The most common question in the waiting area outside a catheterization lab is not “Will it hurt?” It is a quieter one, usually asked while glancing at the clock: “How long will I be in there?” The honest answer has two parts, and most people only hear the first.

The first part is reassuring. The procedure itself, the stretch when a doctor threads a thin tube toward your heart and takes X-ray pictures of the arteries, is often finished before an episode of a television drama would be. The second part surprises people: the day is long anyway. There is paperwork, a blood test, a canula, a wait for the lab, and then a stretch of lying flat that can feel longer than the angiogram did.

This guide walks through both parts, and through the other question people rarely say out loud: how serious a test this really is.

How long does an angiogram take from start to finish?

Two clocks run on angiogram day, and they tell very different times.

The procedure clock is short. MedlinePlus puts a coronary angiography at roughly 30 to 60 minutes, and the NHS gives a wider window of 30 minutes to two hours for angiography in general, depending on which vessels are being imaged and whether anything else is done at the same time. A straightforward diagnostic study of the heart’s arteries usually sits at the lower end of that range.

The hospital clock is long. You will typically arrive one to two hours before your slot for consent, a blood test, an ECG and an intravenous line. After the procedure comes the recovery period, which the NHS notes can be several hours if the catheter went in at the groin. Add the wait for a doctor to review your pictures and talk them through, and most people spend a half day or more on the unit even when everything runs smoothly.

Here is how a typical day divides up. The ranges reflect the sources cited at the end of this article and vary by hospital and by the access route used.

Stage	Typical time	What is happening
Check-in and preparation	1–2 hours	Consent, observations, blood test, IV line, shaving of wrist or groin
The angiogram itself	30–60 minutes (up to 2 hours)	Local anesthetic, catheter placement, contrast dye, X-ray images
Recovery lying flat	1–6 hours	Shorter after wrist access, longer after groin access
Results and discharge	30–60 minutes	Doctor explains findings, wound check, going-home advice

If someone asks you to plan your day, plan for the whole day. If they ask how long the test lasts, the honest number is about an hour.

Why '30 to 60 minutes' does not tell the whole story

Averages hide the reasons a particular angiogram runs long or short. Knowing them makes the waiting easier.

Anatomy is the first variable. Arteries that twist sharply, or that branch in an unusual pattern, take longer to reach with a catheter. The same is true if a vessel has been operated on before; bypass grafts have their own origins that each need to be found and imaged, so a study after bypass surgery is often the longest kind of coronary angiogram.

Access is the second. Reaching the heart through the wrist is standard practice in many centers, and European cardiology guidelines recommend it as the preferred route for most people because bleeding complications are lower. Occasionally the wrist artery goes into spasm or is too small, and the team switches to the groin. That switch costs time but changes nothing about the safety of the pictures.

Findings are the third. If the angiogram shows a narrowing that can be treated immediately, and you consented to that possibility beforehand, the team may go straight on to angioplasty and stenting. Mayo Clinic notes that combining angiography with treatment lengthens the session considerably, often to two hours or more.

Then there is the simplest variable of all: the lab schedule. Emergencies take priority, and an urgent heart attack case arriving ahead of you can shift your slot by an hour or more. It is not a sign that anything is wrong with your own care.

What actually happens during the procedure, step by step

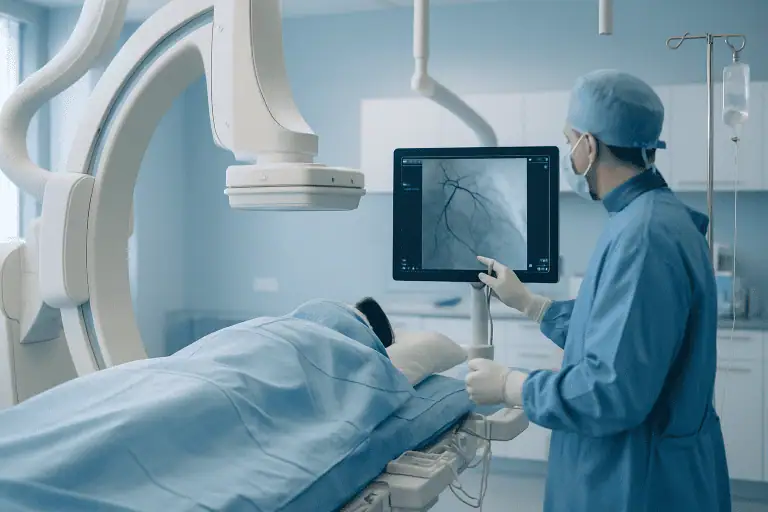

Picture a room that looks more like a radiology suite than an operating theater. A large X-ray camera on an arm swings around a narrow table. Screens line one wall. A nurse, a radiographer and a cardiologist or interventional radiologist move around you in a practiced rhythm.

You lie on your back. Sticky ECG pads monitor your heart rhythm, a cuff tracks your blood pressure, and a clip on your finger measures oxygen. The wrist or groin is cleaned with cold antiseptic and covered with sterile drapes, so you will not see much of what follows.

Local anesthetic is injected into the skin over the artery. This is the part most people describe as a sharp sting that fades within seconds. A fine needle enters the artery, a soft wire follows, and then a thin plastic sheath that acts as a doorway. Through it, the doctor advances a catheter, a tube roughly the width of a piece of spaghetti, along the artery to the heart. Arteries have no pain nerves on the inside, which is why you feel pressure at the entry point but nothing as the catheter travels.

Once the tip sits at the opening of a coronary artery, contrast dye is injected while the camera records. The dye is what makes arteries show up on X-ray; without it, blood vessels are invisible. The camera rotates to capture several angles, and you may be asked to hold your breath for a few seconds at a time so the heart sits still in the frame.

At the end, the catheter is withdrawn, and the entry site is sealed with firm pressure, a small inflatable wristband or a closure device.

Do they put you to sleep for an angiogram?

Usually not, and the reason is practical rather than economical. General anesthesia is rarely used for a diagnostic angiogram because the team needs you awake: to hold your breath on cue, to report chest discomfort if it happens, and to move an arm when asked. MedlinePlus and the NHS both describe the test as being done under local anesthetic, with a sedative offered to help you relax.

That sedative is the source of a lot of confusion. It is typically given through the intravenous line and produces a calm, drowsy state in which time passes strangely; many people remember only fragments. This is not the same as being unconscious. You can still answer questions, and you will breathe on your own throughout. Some people decline sedation altogether and find the experience entirely manageable, while others prefer to remember as little as possible. Both are reasonable choices to discuss with the team on the day.

Children, people who cannot lie still, and certain complex or lengthy procedures are the exceptions where deeper sedation or a general anesthetic may be used. A cerebral angiogram, which involves catheters in the neck and head arteries, is sometimes performed this way, particularly if it is combined with treatment.

The practical consequence of sedation matters more than most people expect. Even a light sedative impairs judgment and reaction time for the rest of the day, which is why hospitals ask that a responsible adult take you home and stay with you overnight, and why driving is off the table until the following day at the earliest.

How painful is an angiogram, honestly?

Most people rate it lower than they feared. That is not a marketing line; it is what turns up consistently in patient-facing descriptions from MedlinePlus, the NHS and Mayo Clinic, and it fits with how the body is wired.

Three sensations account for nearly all the discomfort. The first is the local anesthetic injection, a sting comparable to a dental numbing shot, lasting a few seconds. The second is pressure when the sheath goes into the artery, which feels like a firm push rather than a cut. The third is the contrast dye. When it is injected into the heart’s arteries, or into the aorta for other studies, many people feel a sudden wave of warmth spreading through the chest, pelvis or face, sometimes with a metallic taste or a brief sense that they have wet themselves. It passes in under a minute and is harmless, but it catches people off guard if no one warns them.

Chest tightness can happen during the study, particularly if a narrowed artery is briefly blocked by the catheter or if the heart rhythm changes for a moment. Tell the team; they are watching for exactly this and can pause or adjust.

Afterward, the entry site is usually the sorest part. Bruising at the wrist or groin is common, and the NHS describes soreness there lasting a few days as expected. A large, spreading or hardening lump is a different matter and is covered in the section on warning signs below.

The honest summary: expect brief, sharp moments and a strange warm flush, not sustained pain.

Wrist or groin: why the entry point changes your day

Two arteries offer a route to the heart, and the one your team chooses shapes your recovery more than any other single decision.

The radial artery at the wrist has become the default in many cardiac units, and European guidelines favor it. Its advantages are mostly about what happens after the catheter comes out. The artery sits just under the skin against bone, so it is easy to compress, and the hand has a second artery supplying it, which is why the radial can be safely sealed. Bleeding complications are lower, and you can sit up almost immediately. A tight band around the wrist replaces hours of lying flat. Johns Hopkins describes people being able to walk soon after a wrist procedure.

The femoral artery at the top of the thigh is larger and gives the operator more room to work, which is why it is still used for some complex procedures, for people whose wrist arteries are too small, and in most cerebral angiograms. Its drawback is location. The artery is deep, close to a vein and a nerve, and above a joint that bends. To let the puncture seal, Mayo Clinic notes you will need to lie flat for several hours, keeping the leg straight, before you can sit up and then walk.

Neither route changes the quality of the images. If your team proposes the groin, it is usually because your anatomy or the planned procedure calls for it. Asking which route is planned, and why, is a fair question to raise at your pre-assessment visit.

How long do you have to rest after an angiogram?

Recovery divides into two phases: the hours on the unit, and the days at home.

On the unit, the goal is a sealed artery. After wrist access, the compression band is loosened gradually over one to two hours while nurses check the pulse, color and warmth of the hand. After groin access, the NHS and Mayo Clinic both describe several hours of lying flat, often two to six depending on whether a closure device was used and whether you are on medicines that slow clotting. Nurses will check the site and the pulses in your foot repeatedly. This stretch is boring rather than painful; a book or podcast helps.

You will be encouraged to drink. Contrast dye is cleared by the kidneys, and fluids help flush it through. Most people eat a normal meal once they are allowed to sit up.

At home, the NHS advises avoiding strenuous activity and heavy lifting for a few days to protect the puncture site, and most people return to desk work within one or two days. Driving is usually delayed for at least a day after sedation, and some hospitals advise longer after groin access; your discharge paperwork will say what applies to you.

A few practical points make those days easier. Keep the dressing dry for the first day, then shower rather than bathe. Do not lift a heavy bag or a small child with the arm that was used. If you had a wrist procedure, avoid pushing yourself up from a chair with that hand. Small bruising and mild tenderness are normal; anything larger or more painful deserves a phone call.

How serious is an angiogram? Putting the risks in proportion

An angiogram is an invasive test, and honesty about that is the reason you sign a consent form. It is also one of the most frequently performed cardiac procedures in the world, refined over decades, and serious harm is uncommon. Both things are true at once.

The common problems are minor. Bruising and tenderness at the puncture site top the list; the NHS describes them as expected. A small number of people develop a firmer lump, called a hematoma, which usually settles over days to weeks. Some feel nauseous or light-headed from the sedative or the dye. These are nuisances, not emergencies.

The rare problems are the ones people worry about, and it is fair to name them plainly. MedlinePlus, Mayo Clinic and the NHS list the same set: an allergic reaction to the contrast dye; damage to the artery used for access, including a false aneurysm or a blocked vessel; bleeding; infection; kidney irritation from the dye, which matters most for people whose kidneys already work less well; heart rhythm disturbances during the study; and, most rarely, a heart attack or stroke caused by a clot or plaque dislodged by the catheter. The NHS describes the risk of serious complications as small. Exposure to X-rays is real but low for a diagnostic study, and it is weighed against the value of the information.

Risk is not evenly spread. It rises with age, with kidney disease, with diabetes, and with the complexity of what is being done. That is why the pre-assessment questions about your medicines, allergies and kidney function are not box-ticking; they are the mechanism by which the team lowers your personal risk before you ever lie on the table.

What happens if an angiogram shows a blockage?

This is the question underneath all the others, and the answer is that a blockage is a starting point for a decision, not a verdict.

An angiogram maps the coronary arteries and shows where, and roughly how much, they are narrowed. The team looks at how many vessels are affected, how tight each narrowing is, where it sits, and how it lines up with your symptoms and any earlier tests. From that picture, three broad paths emerge, and MedlinePlus describes each.

The first is treatment through the same catheter. If you have consented in advance and the narrowing is suitable, the cardiologist may perform angioplasty, passing a small balloon to the narrowed segment and inflating it, then usually leaving a stent, a tiny mesh scaffold, to hold the artery open. This adds time to the procedure and often means an overnight stay.

The second is surgery. Some patterns of disease, such as narrowings in several vessels or in the main artery that supplies most of the heart, are better treated by coronary artery bypass grafting. That decision is made later, usually by a cardiologist and a cardiac surgeon together, and involves you fully.

The third is medicines and lifestyle. Many narrowings are best managed without any procedure at all, using medicines that lower cholesterol, reduce clotting tendency and ease the heart’s workload, alongside changes to diet, activity and smoking. Mechanisms like these work over months, not minutes, and the choice of which to use sits with your prescribing clinician.

An angiogram can also come back clear, or show only mild irregularities. That is a genuinely useful result, because it redirects attention to other causes of the symptoms that prompted the test.

Cerebral, CT and other angiograms: how the timings differ

“Angiogram” is a family name. Every member involves making blood vessels visible with contrast dye, but the vessel, the route and the technology change the clock.

A cerebral angiogram images the arteries of the neck and brain. The catheter usually enters at the groin and is guided up through the aorta into the carotid or vertebral arteries. Because the target vessels are smaller and the consequences of disturbing them are greater, the study is slower and more deliberate. MedlinePlus puts the procedure at roughly one to three hours, followed by several hours of lying flat. Some people notice flashing lights or a warm feeling in the face when dye enters the head arteries; both fade quickly.

Peripheral angiograms look at the arteries of the legs, arms or kidneys. Timing is similar to a coronary study, but the route may be chosen to suit the vessel being examined, and treatment of a narrowing is often done in the same session.

A CT angiogram is a different creature altogether. No catheter enters an artery. Contrast is injected through an ordinary vein in the arm and a CT scanner captures the arteries as the dye passes through. The scan itself lasts seconds to a few minutes, and there is no puncture to seal, so recovery is brief. The NHS lists CT angiography among the less invasive alternatives, and it is increasingly the first test for people with chest pain who are not thought to be at high risk. Its limits are equally real: it cannot treat anything, and its accuracy falls when arteries are heavily calcified or the heart rate is fast.

MR angiography uses magnetic fields rather than X-rays and often needs no iodine-based dye at all; it takes longer per scan but involves no radiation.

How to prepare so the day runs on time

Most delays on angiogram day are avoidable, and a surprising number begin at home.

Medicines are the big one. Some tablets need to be paused, some continued, and some adjusted around the procedure. Medicines that slow clotting matter because they raise bleeding risk at the puncture site; certain diabetes medicines matter because they interact with contrast dye and kidney function. The pre-assessment team will give instructions specific to you, and they may differ from what a friend was told. Follow yours, and bring a written list of everything you take, including supplements.

Eating and drinking rules vary. Many hospitals ask you not to eat for a few hours beforehand, in case you need deeper sedation, while allowing clear fluids closer to the time. The NHS and Mayo Clinic both note that instructions come from the hospital performing the test.

Allergies need flagging in advance, especially a previous reaction to contrast dye. Kidney function is usually checked with a blood test beforehand; if yours is reduced, the team may plan extra fluids or a different imaging approach.

Practicalities are the rest. Arrange someone to drive you home and stay overnight. Wear loose clothing, leave jewelry and nail polish behind, and bring something to occupy the hours of lying still. Ask, before the day, whether you are consenting to a diagnostic study alone or to treatment if a narrowing is found; knowing the answer prevents a rushed conversation on the table.

None of this is complicated. It is simply the difference between a day that runs on time and one that stretches into the evening.

When to see a doctor after an angiogram

A little bruising and tenderness at the wrist or groin are normal for several days. The signs below are not, and they call for prompt action rather than waiting for a routine follow-up.

Call emergency services or go to an emergency department straight away if the puncture site bleeds and does not stop after ten minutes of firm, direct pressure; if a lump at the site is growing quickly; if the hand or foot on the treated side becomes cold, pale, blue, numb or very painful, which can mean the artery is blocked; if you develop chest pain, breathlessness, a fast or irregular heartbeat, or a feeling of faintness; or if you notice sudden weakness on one side of the body, facial drooping, slurred speech or a sudden severe headache, which are signs of stroke. These are the rare complications listed by MedlinePlus, Mayo Clinic and the NHS, and speed matters with every one of them.

Contact the unit that performed your angiogram, or your usual doctor, the same day if the site becomes increasingly red, warm, swollen or starts to ooze, since that may signal infection; if you develop a fever; if pain at the site gets worse rather than better after the first two days; if you pass much less urine than usual over the following day or two, which can indicate the kidneys reacting to contrast dye; or if a rash or itching spreads after you get home.

Hospitals give discharge paperwork with a direct phone number for exactly these situations. Keep it somewhere you can find it, and use it. No one on a cardiac unit thinks less of a patient who rings about a bruise.

The one question worth asking before you go in

People prepare for angiograms by asking how long it takes and how much it hurts, and those are fair questions. The question that shapes the day more than either is this: what will happen if you find something?

Some units perform diagnostic angiograms only and refer treatment decisions to a later meeting. Others ask you to consent, in advance, to angioplasty and stenting during the same session if a suitable narrowing appears. Both approaches are standard. What is not acceptable is being surprised. Knowing which model your team follows tells you whether to expect an hour on the table or three, whether you may stay overnight, and whether the conversation about your arteries will happen while you are sedated or later at a desk with time to think.

A second question follows from it: what are the alternatives for someone with my symptoms and risk? For many people at lower risk, a CT angiogram or a stress test comes first, and an invasive angiogram is reserved for when those results, or the symptoms themselves, make treatment likely. For others, particularly those with unstable symptoms, going straight to the catheter lab is the right call. The NHS and Mayo Clinic both describe angiography as a test chosen when its information will change what happens next, not as a routine screen.

The decision about whether, when and how sits with you and your treating team. The evidence is clear that the procedure is quick, that being awake for it is normal, and that serious harm is uncommon. Where the evidence is less tidy, on exactly which narrowings benefit from stents and which do better with medicines, honest clinicians will say so. Ask them to.

Frequently asked questions

How long does an angiogram take?

The procedure itself typically takes 30 to 60 minutes for a standard coronary angiogram, and up to two hours if the anatomy is complex or treatment is done at the same time. The full hospital visit is longer, usually a half day or more, because of preparation beforehand and a recovery period lying still afterward, which is shortest after wrist access and longest after groin access.

How long do you have to rest after an angiogram?

On the unit, expect one to two hours of monitoring after a wrist procedure and several hours lying flat after a groin procedure while the artery seals. At home, avoid strenuous activity and heavy lifting for a few days to protect the puncture site. Most people return to desk work within a day or two, and driving is usually delayed at least a day because of the sedative.

Do they put you to sleep for an angiogram?

Not usually. A diagnostic angiogram is done under local anesthetic at the wrist or groin, often with a light sedative through a vein to help you relax. You remain awake enough to hold your breath on cue and to report any discomfort. General anesthesia is reserved for children, people who cannot lie still, and some complex or lengthy procedures such as certain cerebral angiograms combined with treatment.

How painful is an angiogram?

Most people find it less uncomfortable than they expected. The local anesthetic injection stings briefly, the sheath entering the artery feels like firm pressure, and the contrast dye can cause a strange warm flush lasting under a minute. Arteries have no pain nerves inside, so you do not feel the catheter moving. Afterward, bruising and tenderness at the puncture site for a few days are the most common complaints.

What happens if an angiogram shows a blockage?

A blockage leads to a decision rather than an automatic procedure. Depending on how many vessels are narrowed, how severely, and where, the options are angioplasty with a stent, sometimes done in the same session if you consented beforehand; bypass surgery, decided later with a cardiac surgeon; or medicines and lifestyle changes, which suit many narrowings. Your treating team explains the findings and discusses which path fits your situation.

How serious is an angiogram as a procedure?

It is an invasive test with a small but real risk, which is why you give written consent. Common problems are minor, mainly bruising and soreness at the entry site. Rare but serious complications include allergic reaction to the dye, damage to the artery, bleeding, infection, kidney injury, heart rhythm changes, heart attack and stroke. Risk rises with age, kidney disease and diabetes, and pre-assessment checks aim to reduce it.

Can I go home the same day after an angiogram?

Most people having a diagnostic angiogram go home the same day once the puncture site is stable and the sedative has worn off. An overnight stay is more likely if a stent was placed during the same session, if bleeding at the site needs longer observation, or if you have other health conditions that warrant monitoring. You will need a responsible adult to take you home and stay with you overnight.

How long does a cerebral angiogram take?

A cerebral angiogram usually takes longer than a coronary study, commonly one to three hours, because the arteries of the neck and brain are smaller and are imaged more deliberately. The catheter typically enters at the groin, so recovery involves several hours lying flat afterward. Some people notice brief flashing lights or facial warmth as dye enters the head arteries; both settle within moments.

Is a CT angiogram the same as an angiogram?

No. A CT angiogram uses contrast dye injected into an arm vein and a CT scanner to picture the arteries, with no catheter entering an artery. The scan lasts seconds to minutes and recovery is brief. It cannot treat a narrowing, and its accuracy falls with heavy calcification or a fast heart rate, which is why an invasive angiogram is still used when treatment is likely to be needed.

What should I do about my medicines before an angiogram?

Follow the specific instructions from the team performing your procedure, which are based on your own medicines and kidney function. Medicines that slow blood clotting may need adjusting because they raise bleeding risk at the puncture site, and certain diabetes medicines interact with contrast dye. Never stop a medicine on your own; ask the pre-assessment team, and bring a full written list including supplements on the day.

References

• MedlinePlus – Coronary angiography
• MedlinePlus – Cerebral angiography
• NHS – Angiography
• Cleveland Clinic – Cardiac Catheterization

This article is for general information only and is not a substitute for professional medical advice. Please consult a qualified doctor about your individual situation.
